Automatic Magazine Type PCB Loader for M-size PCBs - 50*80-330*250mm PCB Sizes | INFITEK Board Handling Equipment

INFITEK LD-M-TN Automatic Loader is a magazine-type PCB loading machine used in SMT Production Line. Automatic Magazine Loader manufactured by INFITEK is made of high quality, branded parts, and machine structure with stable design to ensure reliability in operation. The INFITEK Magazine Loader is easy to operate. INFITEK LD-M-TN Automatic Loader is the model designed for M-size PCB. Its rail can be adjusted from 50*80mm to 330*250mm.

SMT PCB Magazine Loader

Model: LD-M-TN

Applicable PCB Sizes: 50*80-330*250 (mm)

PCB Magazine Size: 355*320*563 (mm)

Machine Dimensions: 1330*765*1250 (mm)

Machine Weight: 140 kg.

Features:

• Strong, firm, and stable design
• User-friendly soft touch LED membrane control panel
• Top & bottom pneumatic clamps to secure magazine rack
• No PCB breakage guarantee because of the special gas circuit design
• Automatically diagnosing fault code display function
• Wear-resistant cable and have a long service life
• SMEMA compatible

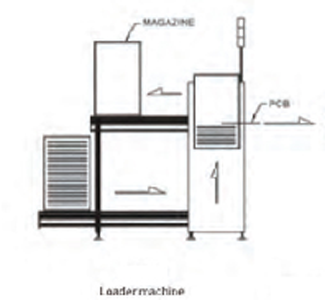

Operation Diagram:

COMPANY PROFILE

MACTECH is a professional company specializing in R&D and manufacturing of Board Handling Equipment and other Factory Automation Equipment used in Electronic Products Manufacturing.

MACTECH was established in 2006 and is now one of the world's leading suppliers of high-quality AI and SMT Factory Automation Machines, Equipment, and Production Solution Products. As an export company, we always aim to provide high-quality products to customers in Asia, America, and Europe at competitive prices. With the long-term support and help of global customers, we are able to expand our business in a short period of time.

Our factory is located in Shajing, China, consisting of about 40 Engineers and Professional Staff that handle R&D, Production, and Quality Assurance Team that ensures that all products we deliver are well inspected and pass high-quality standards, and a Sales and Customer Support Team that provides support to our customer's inquiries, after-sales support, and other concerns.

INFITEK is the official brand name of equipment manufactured by MACTECH

Our Product Line:

• Board Handling Equipment
• Automatic Magazine Loader and Unloader
• PCB Link Conveyor
• SMT Gate Conveyor
• PCB Turn Conveyor
• PCB Cleaning Machine
• PCB Buffer Conveyor
• Wave Solder Conveyor
• DIP and PCBA Assembly Line Conveyors
• Specialty Conveyors

SMT Machines

• Semi-Automatic Solder Paste Printer
• Automatic Splice Tape Splicing Machine
• Automatic Waste Tape Cutting Machine
• PCB Cutting Machine

MACTECH is now among China's leading providers of innovative SMT Factory Automation and Solution Products. We have achieved this because of the continuous support provided by our valued clients, and business partners.

We will ensure that we will continue to provide high-quality products at competitive prices. We will also keep our communication open and always listen to our customer's needs and help our clients reach their goals.
