L Type UnLoader designed for L Size PCB, 50*80-445*330mm PCBs | INFITEK Board Handling Equipment

INFITEK ULF-L-TN L-Type Magazine Unloader is a PCB UnloadingConveyor and Magazine Stacker Machine used in SMT Production Line. The L-Type Unloader has a more compact design than the regular Magazine Type PCB Unloader, it is designed to take up little space and is suitable for SMT production lines with limited space. INFITEK ULF-L-TN L-Type Magazine Unloader is a model designed for L-size PCBs.

L TYPE UNLOADER

Model No.: ULF-L-TN

Applicable PCBs: 50*80-445*330 (mm)

PCB Rack Size: 460*400*563 (mm)

Equipment Dimensions: 1350*1350*1205 (mm)

Weight: Approx. 220 kg.

Features:

• Strong, firm, and stable design
• MCGS Touch Screen and Panasonic PLC Control and OMRON Relay.
• User-friendly “soft touch” LED membrane control panel or touch screen can be selected
• Top & bottom pneumatic clamps to secure magazine rack
• No PCB breakage guarantee because of the special gas circuit design
• Automatic diagnosing fault code display function
• Durable cable and have a long service life
• SMEMA compatible

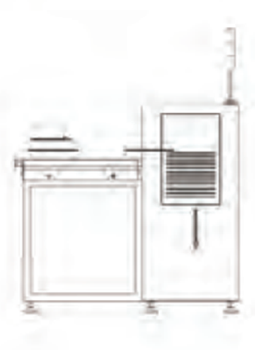

Operation Diagram:
