Automatic Magazine Type PCB Unloader for L-size PCBs - 50*80-445*330mm PCB Sizes | INFITEK Board Handling Equipment

INFITEK UL-L-TN Automatic Unloader is a type of Magazine Type PCB Unloader used in SMT Production Line. This board handling equipment was designed by INFITEK using ideas and designs and problems that were independently developed and combined with original and branded parts to produce a quality, high level of durability, reliable durability, and above all, ensured a high level of user safety. The UL-L-TN Automatic Magazine Type PCB Unloader is the model designed for use with L-size PCBs. It has an adjustable width that can accommodate PCBs with sizes from 50*80-445*330mm.

SMT PCB Magazine Unloader

Model: UL-L-TN

Applicable PCB Sizes: 50*80-445*330 (mm)

PCB Magazine Size: 460*400*563 (mm)

Machine Dimensions: 2065*845*1250 (mm)

Machine Weight: 220 kg.

Features:

• Strong, firm, and stable design
• User-friendly soft touch LED membrane control panel
• Top & bottom pneumatic clamps to secure magazine rack
• No PCB breakage guarantee because of the special gas circuit design
• Automatically diagnosing fault code display function
• Wear-resistant cable and have a long service life
• SMEMA compatible

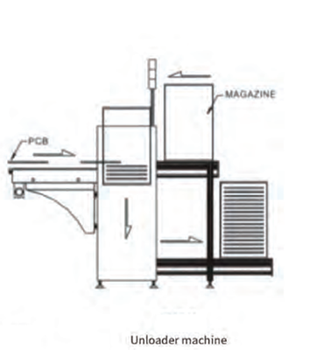

Operation Diagram:

COMPANY PROFILE

MACTECH is a professional company specializing in R&D and manufacturing of Board Handling Equipment and other Factory Automation Equipment used in Electronic Products Manufacturing.

MACTECH was established in 2006 and is now one of the world's leading suppliers of high-quality AI and SMT Factory Automation Machines, Equipment, and Production Solution Products. As an export company, we always aim to provide high-quality products to customers in Asia, America, and Europe at competitive prices. With the long-term support and help of global customers, we are able to expand our business in a short period of time.

Our factory is located in Shajing, China, consisting of about 40 Engineers and Professional Staff that handle R&D, Production, and Quality Assurance Team that ensures that all products we deliver are well inspected and pass high-quality standards, and a Sales and Customer Support Team that provides support to our customer's inquiries, after-sales support, and other concerns.

INFITEK is the official brand name of equipment manufactured by MACTECH
