Automatic Magazine Type PCB Unloader for LL-size PCBs - 50*80-530*390mm PCB Sizes | INFITEK Board Handling Equipment

SMT PCB Magazine Unloader with model number UL-LL-TN is a board handling equipment used in SMT Production Line. This Magazine Type PCB Unloading machine was designed by INFITEK using its own developed design and software and used quality and imported branded parts to ensure quality, durability, product efficiency, and operational safety level. The INFITEK UL-LL-TN Automatic PCB Unloading Machine is designed to be used for LL-size PCBs and has an adjustable rail width that can handle PCBs with sizes from 50*80-530*390mm.

SMT PCB Magazine Unloader

Model: UL-LL-TN

Applicable PCB Sizes: 50*80-530*390 (mm)

PCB Magazine Size: 535*460*563 (mm)

Machine Dimensions: 2260*909*1250 (mm)

Machine Weight: 280 kg.

Features:

• Strong, firm, and stable design
• User-friendly soft touch LED membrane control panel
• Top & bottom pneumatic clamps to secure magazine rack
• No PCB breakage guarantee because of the special gas circuit design
• Automatically diagnosing fault code display function
• Wear-resistant cable and have a long service life
• SMEMA compatible

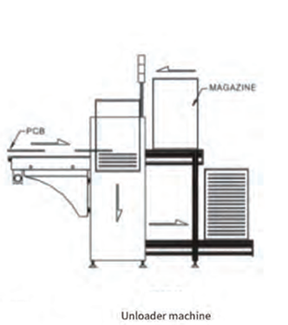

Operation Diagram:
