    Automatic PCB Shuttle Conveyor Brake Motor , SMT Production Line For 50*50 - 460*350mm PCBs

    Ask Lasest Price
    Brand Name : INFITEK
    Model Number : PD-L-BN
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Automatic PCB Shuttle Conveyor Brake Motor , SMT Production Line For 50*50 - 460*350mm PCBs

    SMT production Line Automatic PCB Elevator Conveyor for 50*50-460*350mm PCBs |INFITEK Board Handling Equipment


    INFITEK PD-L-BN Automatic Elevator is a Board Handling Equipment used in SMT Production Line. This PCB conveyor serves as an automatic PCB Elevator that transports PCB and redirects PCB flow to different heights in the Production Line. The INFITEK PD-L-BN Automatic PCB Elevator Conveyor is easy to operate and ensures a safe design. It has a fully enclosed design and uses movement limit sensors to ensure a high level of safety. The top cover has an opening to easily access the inside of the machine for maintenance. INFITEK PD-L-BN Automatic Elevator is designed for PCBs with sizes from 50*50mm to 460*350mm.

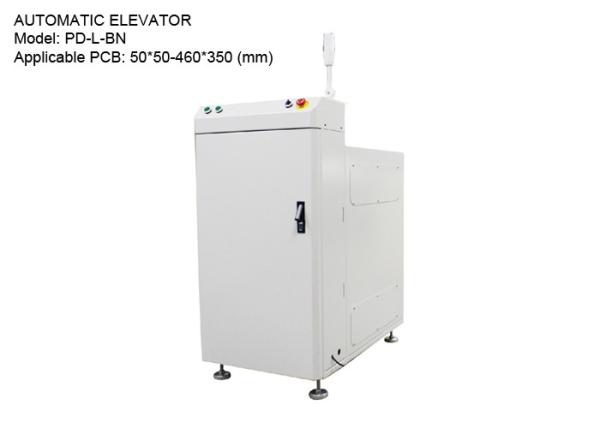

    AUTOMATIC ELEVATOR

    Model: PD-L-BN

    PCB Size: 50*50-460*350 (mm)

    Machine Dimensions: 500*920*H (mm)

    Machine Weight: 140 kg.


    Features:

    • User-friendly “soft-touch” LED control membrane control panel
    • Enclosed design with turn limiter ensures the highest level of safety
    • The top cover can be opened for easy access to hardware during maintenance
    • Parallel and smooth width adjustment (lead screw)
    • Steady and precise inverting (brake motor)
    • Minimize transmission clearance between conveyors
    • Different sizes available upon request
    • SMEMA compatible

    TECHNICAL PARAMETERS
    DescriptionThis unit is used to redirect PCBs flow to different heights in a production line
    Cycle timeDepends on the lifting distance
    Belt typeRound belt or oblate belt
    Power supplyAC1P110V/220V
    PowerMax 250VA
    Transport directionFrom left to right or right to left
